The JKC QH Series All-in-One Solar Street Light is designed to provide efficient, reliable, and intelligent outdoor lighting for a wide range of residential, municipal, and commercial applications. Featuring a compact integrated design with a high-efficiency monocrystalline solar panel, intelligent controller, long-life more than 2,000 cycle LiFePO4 battery, and high-brightness LED module, this all in one solar street light delivers dependable dusk-to-dawn illumination with low maintenance and easy installation. As a versatile solar powered outdoor lighting solution, the QH Series is ideal for streets, parks, courtyards, campuses, and public spaces, helping reduce energy consumption while supporting sustainable infrastructure development.
LED module can be adjusted in angle and is suitable for different roads.
Large battery box has a built-in large-capacity battery, and adopts a leading pull-out design.
High class integrated die-cast aluminum alloy case.
Lighting mode use intelligence radar sensor with a long sensing distance.
High-efficiency LED chips, 140° viewing angle, and a wider lighting range.
Intelligent power adjustment, automatic weather judgment, reasonable planning of discharge rules, automatic switching.

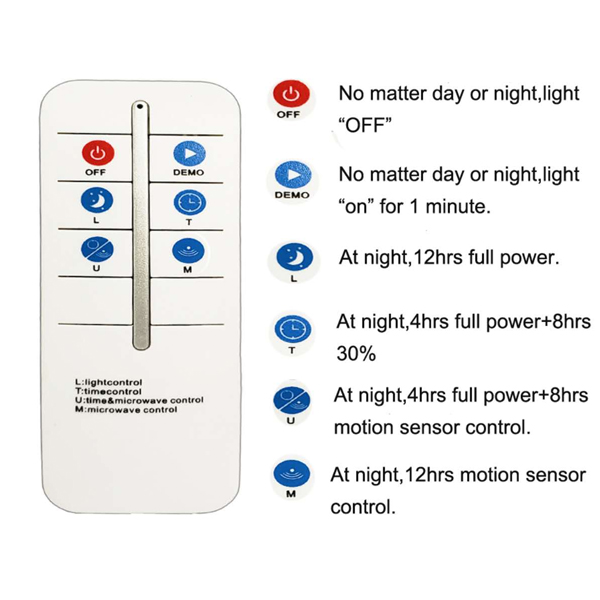

With remote control, UVA technology, strong corrosion resistance, 30m remote control operation, 4 lighting modes.
Easy disassembly, Installation and maintenance, only take three minutes.
Thick installation base and bracket for better wind resistance.
| Type | Pictures | Specification | |||||

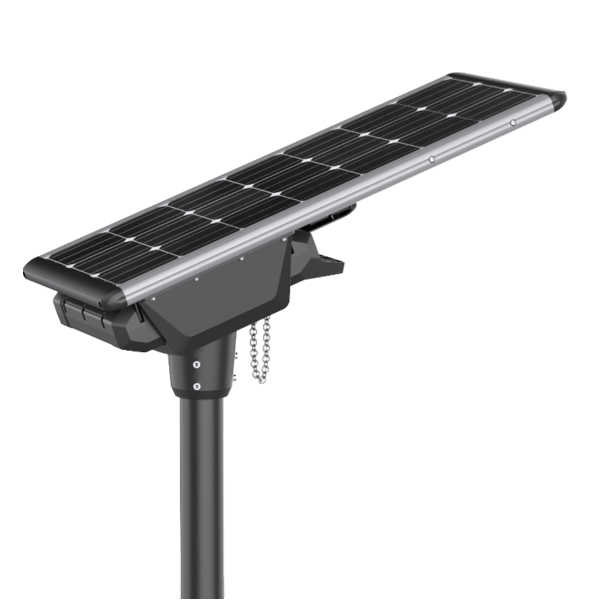

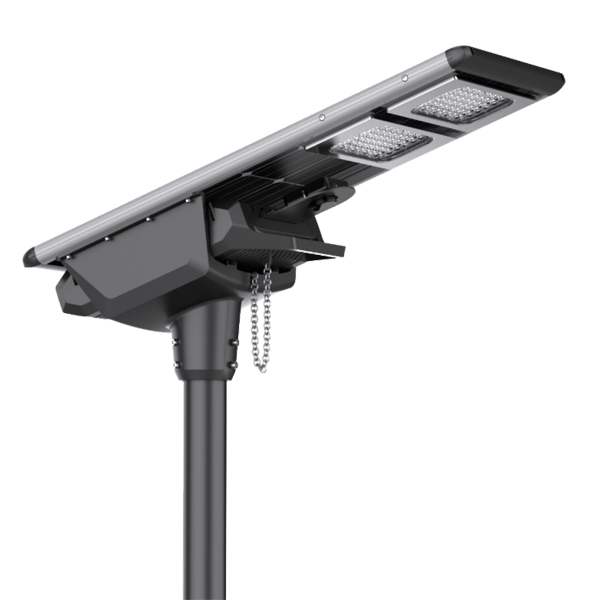

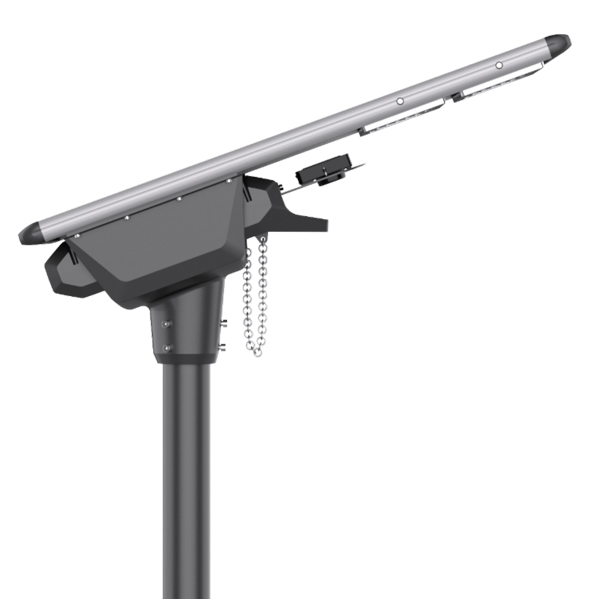

| JKC-QH-60W |
| Features: 1.LED module can be adjusted in angle and is suitable for different roads. 2.Large battery box has a built-in large-capacity battery, and adopts a leading pull-out design. 3.High class integrated die-cast aluminum alloy case. 4.Lighting mode use intelligence radar sensor with a long sensing distance. 5.High-efficiency LED chips, 140° viewing angle, and a wider lighting range. 6 Intelligent power adjustment, automatic weather judgment, reasonable planning of discharge rules, automatic switching. 7.With remote control, UVA technology, strong corrosion resistance, 30m remote control operation, 4 lighting modes. 8.Easy disassembly, Installation and maintenance, only take three minutes. 9.Thick installation base and bracket for better wind resistance. | |||||
| LED | 60W Bridgelux chips5050（Life time 100000hours） | ||||||
| Lumen(LM) | 190LM/W | ||||||
| Colour Tempreture | 6000K ~6500K（it can be customized） | ||||||
| LifePO4 Battery | 30AH 12.8V | ||||||
| Solar Panel | 18V 80W Imported High Efficiency Monocrystalline Silicon | ||||||
| Install Pole diameter | 70-76mm | ||||||
| Mounting Height | 6~8m （Suggest install between space20-25m） | ||||||
| Solar Charging Time | 6 hours by bright sunlight | ||||||
| Cloudy/Rainy days | 5-7 Cloudy/Rainy days | ||||||
| Material | High Class Aluminum | ||||||
| Product Size | 949*434*319mm | ||||||
| LED Lamp | 96PCS | ||||||
| Motion sensor | Yes（Microwave Sensor） | ||||||
| Remote Control | Yes（1pc remote control per lot） | ||||||
| Waterproof | IP66 | ||||||
| Working Tempreture | -25℃ to 65℃ | ||||||
| Certificates | CE、ROHS、IP66 | ||||||
| Warranty | 3Years | ||||||
| Lighting Mode | |||||||
 | |||||||
| Split Packaging: LED Lamp Packing Size:1010*100*495MM Q'ty/ctn:1Set G.W:9.1KG Battery box packing size:510*470*495MM Q'ty/ctn:1Set G.W:6.2KG Packs Containers： 20GP:165Sets 40GP:340Sets 40HP:405Sets | Integrated Packaging: LED Lamp Packing Size:1010*290*500MM Q'ty/ctn:1Set G.W:15.8KG Packs Containers： 20GP:190Sets 40GP:390Sets 40HP:465Sets | ||||||

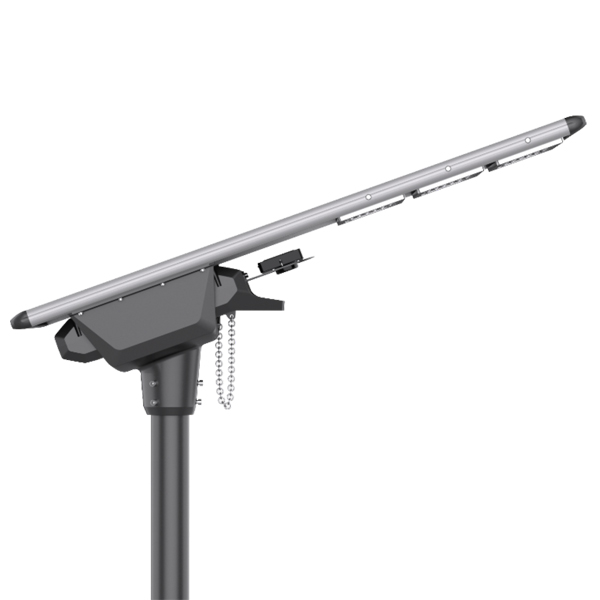

| Type | Pictures | Specification | |||||

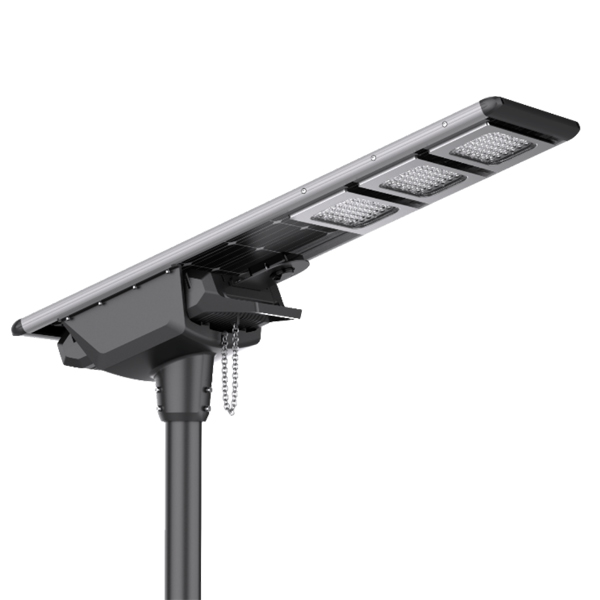

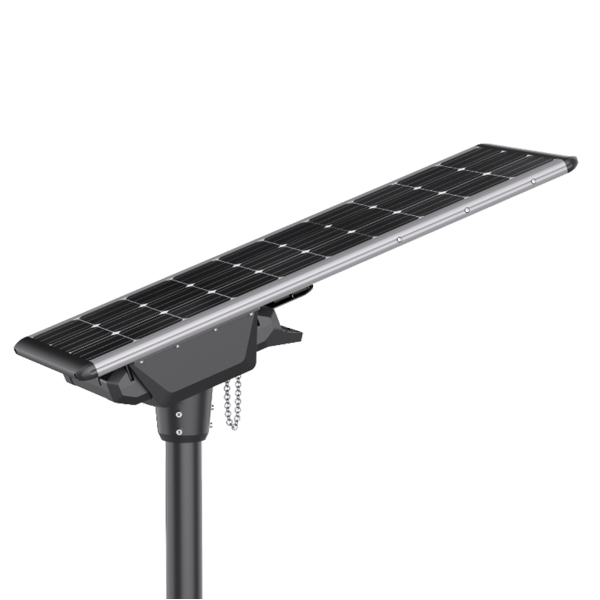

| Features: 1.LED module can be adjusted in angle and is suitable for different roads. 2.Large battery box has a built-in large-capacity battery, and adopts a leading pull-out design. 3.High class integrated die-cast aluminum alloy case. 4.Lighting mode use intelligence radar sensor with a long sensing distance. 5.High-efficiency LED chips, 140° viewing angle, and a wider lighting range. 6 Intelligent power adjustment, automatic weather judgment, reasonable planning of discharge rules, automatic switching. 7.With remote control, UVA technology, strong corrosion resistance, 30m remote control operation, 4 lighting modes. 8.Easy disassembly, Installation and maintenance, only take three minutes. 9.Thick installation base and bracket for better wind resistance. | ||||||
| LED | 80W Bridgelux chips5050（Life time 100000hours） | ||||||
| Lumen(LM) | 190LM/W | ||||||
| Colour Tempreture | 6000K ~6500K（it can be customized） | ||||||
| LifePO4 Battery | 45AH 12.8V | ||||||
| Solar Panel | 18V 100W Imported High Efficiency Monocrystalline Silicon | ||||||
| Install Pole diameter | 70-76mm | ||||||
| Mounting Height | 8~9m （Suggest install between space25-30m） | ||||||
| Solar Charging Time | 6 hours by bright sunlight | ||||||
| Cloudy/Rainy days | 5-7 Cloudy/Rainy days | ||||||
| Material | High Class Aluminum | ||||||
| Product Size | 1229*434*319mm | ||||||
| LED Lamp | 144PCS | ||||||
| Motion sensor | Yes（Microwave Sensor） | ||||||
| Remote Control | Yes（1pc remote control per lot） | ||||||
| Waterproof | IP66 | ||||||
| Working Tempreture | -25℃ to 65℃ | ||||||
| Certificates | CE、ROHS、IP66 | ||||||
| Warranty | 3Years | ||||||
| Lighting Mode | |||||||
 | |||||||
| Split Packaging: LED Lamp Packing Size:1290*100*495MM Q'ty/ctn:1Set G.W:10.9KGBattery box packing size:510*470*495MM Q'ty/ctn:1Set G.W:7.3KG Packs Containers： 20GP:155Sets 40GP:310Sets 40HP:370Sets | Integrated Packaging: LED Lamp Packing Size:1290*290*500MM Q'ty/ctn:1Set G.W:19KG Packs Containers： 20GP:150Sets 40GP:305Sets 40HP:365Sets | ||||||
| Type | Pictures | Specification | |||||

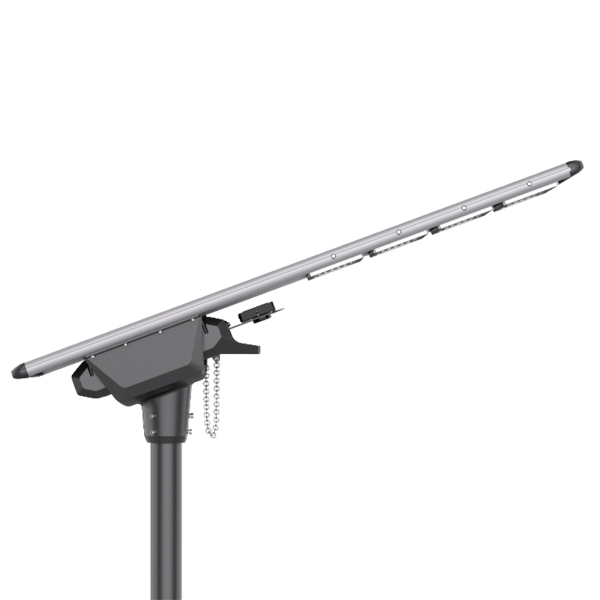

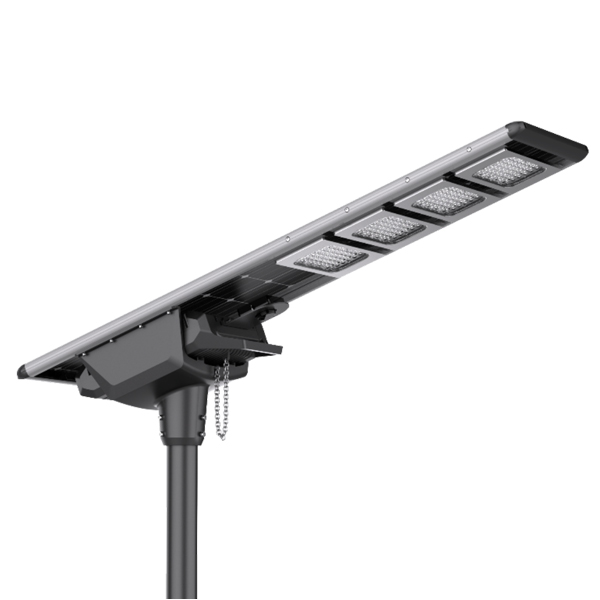

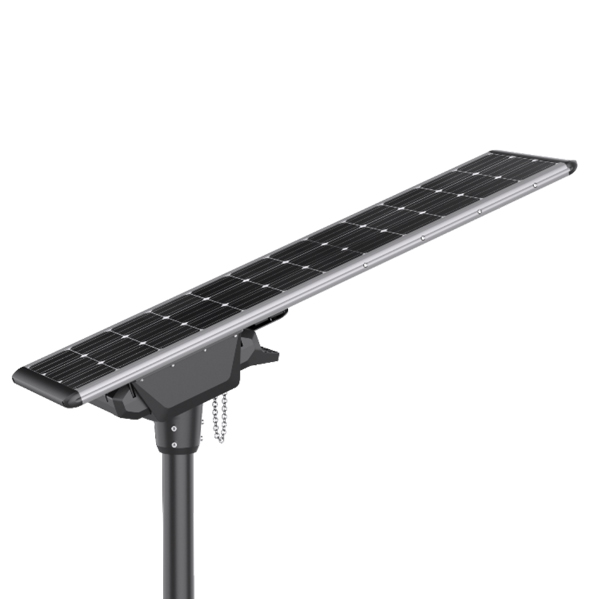

| JKC-QH-100W |
| Features: 1.LED module can be adjusted in angle and is suitable for different roads. 2.Large battery box has a built-in large-capacity battery, and adopts a leading pull-out design. 3.High class integrated die-cast aluminum alloy case. 4.Lighting mode use intelligence radar sensor with a long sensing distance. 5.High-efficiency LED chips, 140° viewing angle, and a wider lighting range. 6 Intelligent power adjustment, automatic weather judgment, reasonable planning of discharge rules, automatic switching. 7.With remote control, UVA technology, strong corrosion resistance, 30m remote control operation, 4 lighting modes. 8.Easy disassembly, Installation and maintenance, only take three minutes. 9.Thick installation base and bracket for better wind resistance. | |||||
| LED | 100W Bridgelux chips5050（Life time 100000hours） | ||||||
| Lumen(LM) | 190LM/W | ||||||
| Colour Tempreture | 6000K ~6500K（it can be customized） | ||||||
| LifePO4 Battery | 45AH 12.8V | ||||||
| Solar Panel | 18V 130W Imported High Efficiency Monocrystalline Silicon | ||||||
| Install Pole diameter | 70-76mm | ||||||
| Mounting Height | 9~10m （Suggest install between space30-35m） | ||||||
| Solar Charging Time | 6 hours by bright sunlight | ||||||
| Cloudy/Rainy days | 5-7 Cloudy/Rainy days | ||||||
| Material | High Class Aluminum | ||||||
| Product Size | 1489*434*319mm | ||||||
| LED Lamp | 192PCS | ||||||
| Motion sensor | Yes（Microwave Sensor） | ||||||
| Remote Control | Yes（1pc remote control per lot） | ||||||
| Waterproof | IP66 | ||||||
| Working Tempreture | -25℃ to 65℃ | ||||||
| Certificates | CE、ROHS、IP66 | ||||||
| Warranty | 3Years | ||||||
| Lighting Mode | |||||||
 | |||||||
Split Packaging: LED Lamp Packing Size:1550*100*495MM Q'ty/ctn:1Set G.W:12.4KG Battery box packing size:510*470*495MM Q'ty/ctn:1Set G.W:7.3KG Packs Containers： 20GP:145Sets 40GP:290Sets 40HP:350Sets | Integrated Packaging: LED Lamp Packing Size:1550*290*500MM Q'ty/ctn:1Set G.W:20.8KG Packs Containers： 20GP:125Sets 40GP:255Sets 40HP:300Sets | ||||||
| Type | Pictures | Specification | |||||
| JKC-QH-120W |
| Features: 1.LED module can be adjusted in angle and is suitable for different roads. 2.Large battery box has a built-in large-capacity battery, and adopts a leading pull-out design. 3.High class integrated die-cast aluminum alloy case. 4.Lighting mode use intelligence radar sensor with a long sensing distance. 5.High-efficiency LED chips, 140° viewing angle, and a wider lighting range. 6 Intelligent power adjustment, automatic weather judgment, reasonable planning of discharge rules, automatic switching. 7.With remote control, UVA technology, strong corrosion resistance, 30m remote control operation, 4 lighting modes. 8.Easy disassembly, Installation and maintenance, only take three minutes. 9.Thick installation base and bracket for better wind resistance. | |||||
| LED | 120W Bridgelux chips5050（Life time 100000hours） | ||||||
| Lumen(LM) | 190LM/W | ||||||
| Colour Tempreture | 6000K ~6500K（it can be customized） | ||||||
| LifePO4 Battery | 60AH 12.8V | ||||||
| Solar Panel | 18V 140W Imported High Efficiency Monocrystalline Silicon | ||||||
| Install Pole diameter | 70-76mm | ||||||
| Mounting Height | 10~11m （Suggest install between space35-40m） | ||||||
| Solar Charging Time | 6 hours by bright sunlight | ||||||
| Cloudy/Rainy days | 5-7 Cloudy/Rainy days | ||||||
| Material | High Class Aluminum | ||||||
| Product Size | 1684*434*319mm | ||||||
| LED Lamp | 192PCS | ||||||
| Motion sensor | Yes（Microwave Sensor） | ||||||
| Remote Control | Yes（1pc remote control per lot） | ||||||
| Waterproof | IP66 | ||||||
| Working Tempreture | -25℃ to 65℃ | ||||||
| Certificates | CE、ROHS、IP66 | ||||||
| Warranty | 3Years | ||||||
| Lighting Mode | |||||||
 | |||||||
Split Packaging: LED Lamp Packing Size:1745*100*495MM Q'ty/ctn:1Set G.W:13.5KG Battery box packing size:510*470*495MM Q'ty/ctn:1Set G.W:8.5KG Packs Containers： 20GP:136Sets 40GP:280Sets 40HP:330Sets | Integrated Packaging: LED Lamp Packing Size:1745*290*500MM Q'ty/ctn:1Set G.W:23.4KG Packs Containers： 20GP:110Sets 40GP:225Sets 40HP:270Sets | ||||||
| Type | Pictures | Specification | |||||

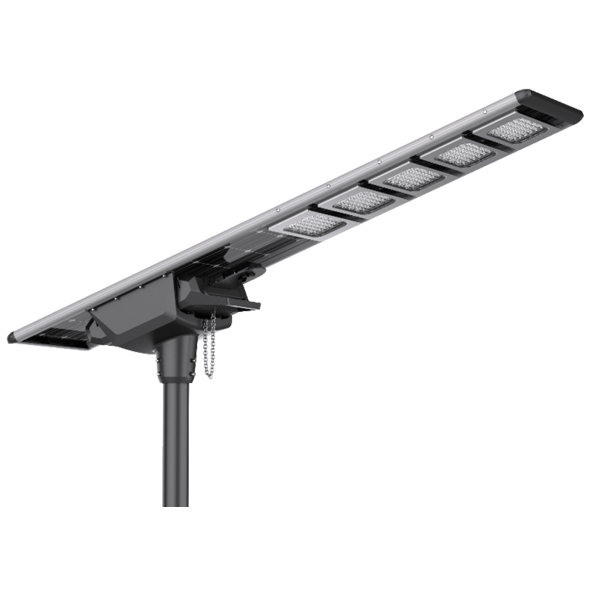

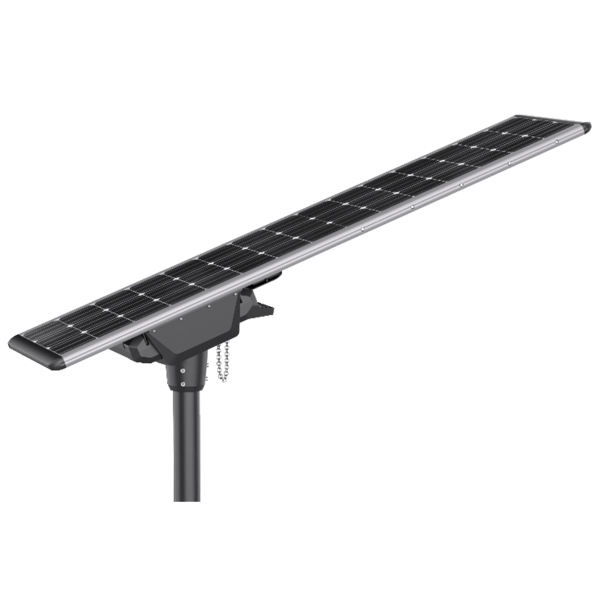

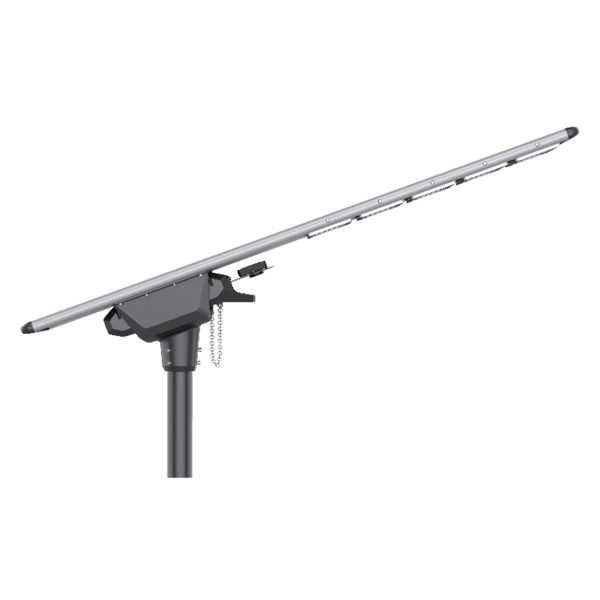

| JKC-QH-150W |
| Features: 1.LED module can be adjusted in angle and is suitable for different roads. 2.Large battery box has a built-in large-capacity battery, and adopts a leading pull-out design. 3.High class integrated die-cast aluminum alloy case. 4.Lighting mode use intelligence radar sensor with a long sensing distance. 5.High-efficiency LED chips, 140° viewing angle, and a wider lighting range. 6 Intelligent power adjustment, automatic weather judgment, reasonable planning of discharge rules, automatic switching. 7.With remote control, UVA technology, strong corrosion resistance, 30m remote control operation, 4 lighting modes. 8.Easy disassembly, Installation and maintenance, only take three minutes. 9.Thick installation base and bracket for better wind resistance. | |||||
| LED | 150W Bridgelux chips5050（Life time 100000hours） | ||||||
| Lumen(LM) | 190LM/W | ||||||
| Colour Tempreture | 6000K ~6500K（it can be customized） | ||||||
| LifePO4 Battery | 75AH 12.8V | ||||||
| Solar Panel | 18V 150W Imported High Efficiency Monocrystalline Silicon | ||||||
| Install Pole diameter | 70-76mm | ||||||
| Mounting Height | 10~12m （Suggest install between space35-40m） | ||||||
| Solar Charging Time | 6 hours by bright sunlight | ||||||
| Cloudy/Rainy days | 5-7 Cloudy/Rainy days | ||||||
| Material | High Class Aluminum | ||||||
| Product Size | 1814*434*319mm | ||||||
| LED Lamp | 240PCS | ||||||
| Motion sensor | Yes（Microwave Sensor） | ||||||
| Remote Control | Yes（1pc remote control per lot） | ||||||
| Waterproof | IP66 | ||||||
| Working Tempreture | -25℃ to 65℃ | ||||||
| Certificates | CE、ROHS、IP66 | ||||||
| Warranty | 3Years | ||||||
| Lighting Mode | |||||||
 | |||||||
Split Packaging: LED Lamp Packing Size:1875*100*495MM Q'ty/ctn:1Set G.W:14.6KG Battery box packing size:510*470*495MM Q'ty/ctn:1Set G.W:9.8KG Packs Containers： 20GP:135Sets 40GP:270Sets 40HP:320Sets | Integrated Packaging: LED Lamp Packing Size:1875*290*500MM Q'ty/ctn:1Set G.W:26.1KG Packs Containers： 20GP:100Sets 40GP:210Sets 40HP:250Sets | ||||||
| Type | Pictures | Specification | |||||

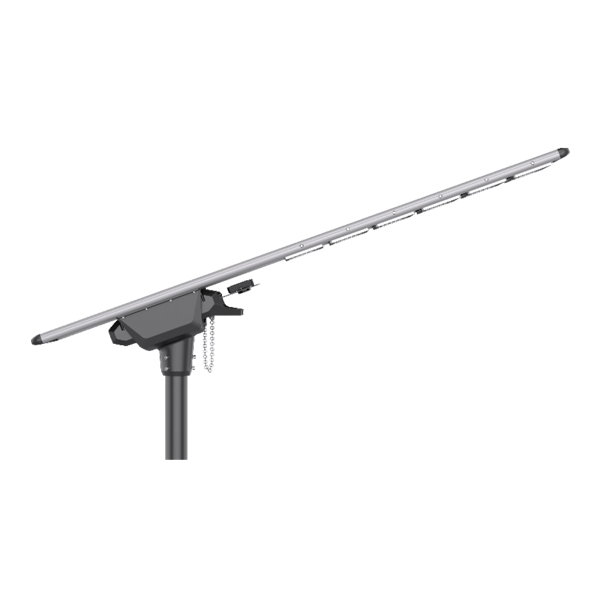

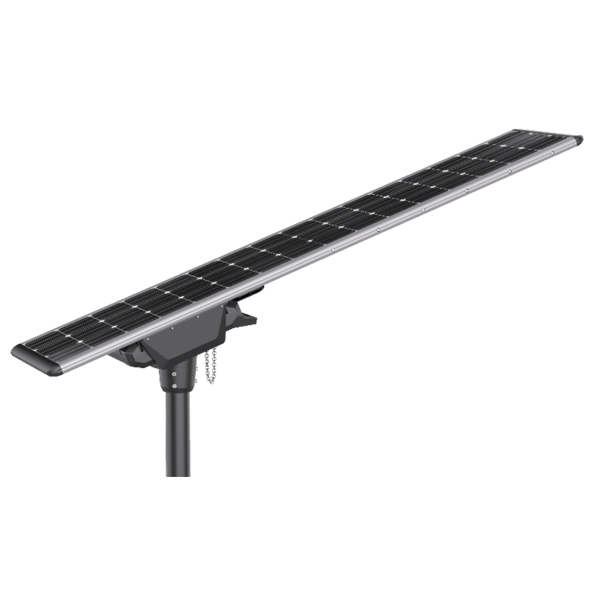

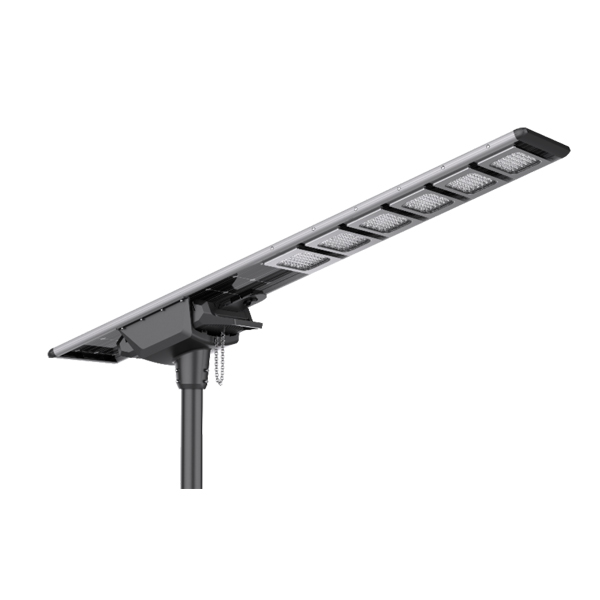

| JKC-QH-200W |
| Features: 1.LED module can be adjusted in angle and is suitable for different roads. 2.Large battery box has a built-in large-capacity battery, and adopts a leading pull-out design. 3.High class integrated die-cast aluminum alloy case. 4.Lighting mode use intelligence radar sensor with a long sensing distance. 5.High-efficiency LED chips, 140° viewing angle, and a wider lighting range. 6 Intelligent power adjustment, automatic weather judgment, reasonable planning of discharge rules, automatic switching. 7.With remote control, UVA technology, strong corrosion resistance, 30m remote control operation, 4 lighting modes. 8.Easy disassembly, Installation and maintenance, only take three minutes. 9.Thick installation base and bracket for better wind resistance. | |||||
| LED | 200W Bridgelux chips5050（Life time 100000hours） | ||||||
| Lumen(LM) | 190LM/W | ||||||
| Colour Tempreture | 6000K ~6500K（it can be customized） | ||||||
| LifePO4 Battery | 45AH 25.6V | ||||||
| Solar Panel | 36V 200W Imported High Efficiency Monocrystalline Silicon | ||||||
| Install Pole diameter | 70-76mm | ||||||
| Mounting Height | 10~12m （Suggest install between space35-40m） | ||||||
| Solar Charging Time | 6 hours by bright sunlight | ||||||
| Cloudy/Rainy days | 5-7 Cloudy/Rainy days | ||||||
| Material | High Class Aluminum | ||||||
| Product Size | 1984*434*319mm | ||||||
| LED Lamp | 288PCS | ||||||
| Motion sensor | Yes（Microwave Sensor） | ||||||
| Remote Control | Yes（1pc remote control per lot） | ||||||
| Waterproof | IP66 | ||||||
| Working Tempreture | -25℃ to 65℃ | ||||||
| Certificates | CE、ROHS、IP66 | ||||||
| Warranty | 3Years | ||||||
| Lighting Mode | |||||||
 | |||||||
Split Packaging: LED Lamp Packing Size:2045*100*495MM Q'ty/ctn:1Set G.W:16KG Battery box packing size:510*470*495MM Q'ty/ctn:1Set G.W:11KG Packs Containers： 20GP:125Sets 40GP:260Sets 40HP:310Sets | Integrated Packaging: LED Lamp Packing Size:2045*290*500MM Q'ty/ctn:1Set G.W:29KG Packs Containers： 20GP:95Sets 40GP:190Sets 40HP:230Sets | ||||||
| Type | Pictures | Specification | |||||

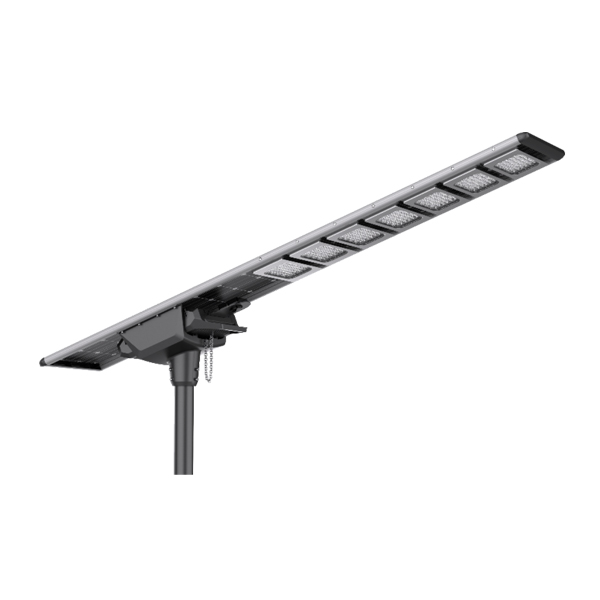

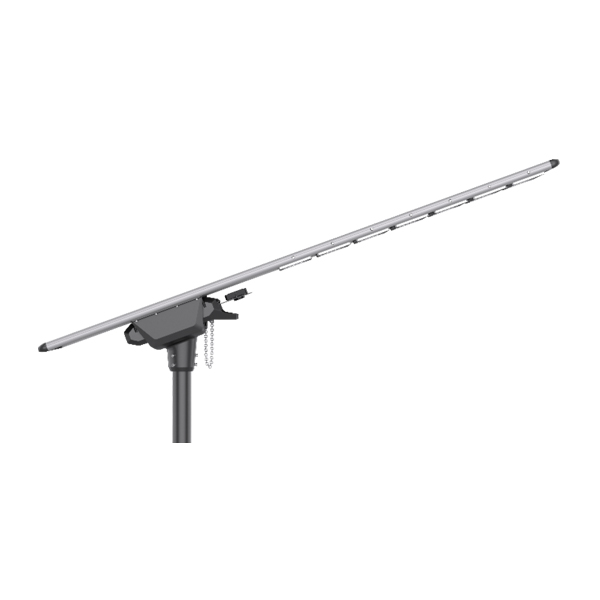

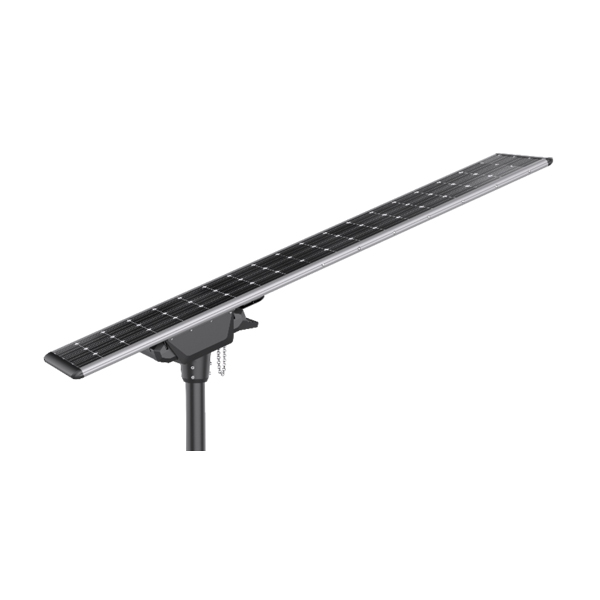

| JKC-QH-250W |
| Features: 1.LED module can be adjusted in angle and is suitable for different roads. 2.Large battery box has a built-in large-capacity battery, and adopts a leading pull-out design. 3.High class integrated die-cast aluminum alloy case. 4.Lighting mode use intelligence radar sensor with a long sensing distance. 5.High-efficiency LED chips, 140° viewing angle, and a wider lighting range. 6 Intelligent power adjustment, automatic weather judgment, reasonable planning of discharge rules, automatic switching. 7.With remote control, UVA technology, strong corrosion resistance, 30m remote control operation, 4 lighting modes. 8.Easy disassembly, Installation and maintenance, only take three minutes. 9.Thick installation base and bracket for better wind resistance. | |||||
| LED | 250W Bridgelux chips5050（Life time 100000hours） | ||||||
| Lumen(LM) | 190LM/W | ||||||
| Colour Tempreture | 6000K ~6500K（it can be customized） | ||||||
| LifePO4 Battery | 60AH 25.6V | ||||||
| Solar Panel | 36V 250W Imported High Efficiency Monocrystalline Silicon | ||||||
| Install Pole diameter | 70-76mm | ||||||
| Mounting Height | 10~12m （Suggest install between space35-40m） | ||||||
| Solar Charging Time | 6 hours by bright sunlight | ||||||
| Cloudy/Rainy days | 5-7 Cloudy/Rainy days | ||||||
| Material | High Class Aluminum | ||||||
| Product Size | 2264*434*319mm | ||||||
| LED Lamp | 336PCS | ||||||
| Motion sensor | Yes（Microwave Sensor） | ||||||
| Remote Control | Yes（1pc remote control per lot） | ||||||
| Waterproof | IP66 | ||||||
| Working Tempreture | -25℃ to 65℃ | ||||||
| Certificates | CE、ROHS、IP66 | ||||||
| Warranty | 3Years | ||||||
| Lighting Mode | |||||||
 | |||||||
Split Packaging: LED Lamp Packing Size:2325*100*495MM Q'ty/ctn:1Set G.W:17.5KG Battery box packing size:510*470*495MM Q'ty/ctn:1Set G.W:13.5KG Packs Containers： 20GP:120Sets 40GP:245Sets 40HP:290Sets | Integrated Packaging: LED Lamp Packing Size:2325*290*500MM Q'ty/ctn:1Set G.W:33.5KG Packs Containers： 20GP:85Sets 40GP:170Sets 40HP:200Sets | ||||||
