Engineered to fulfill a wide range of commercial lighting requirements, the JKC-NM Series redefines outdoor illumination with its highly adaptable, robust design. As a versatile oem all in one solar street light product line, this high-performance series consolidates high-efficiency monocrystalline solar panels, premiumlong-life more than 2,000 cycle LiFePO4 battery, and smart MPPT intelligence into a single aerodynamic housing. Built to eliminate intricate wiring and reduce lifetime maintenance overhead, this advanced oem all in one led solar street light platform delivers consistent, brilliant illumination for municipal roadways, industrial complexes, and extensive logistics parks. International procurement teams can easily scale specifications and access specialized dimming configurations directly through this flexible oem solar led street light all in one engineering framework.
| 40W | |||
| Item NO.：JKC-NM40W | Specifications | ||
| Solar panel | Max power | 18V 50W(Imported High Efficiency Monocrystalline Silicon) |
| Life time | 25years | ||
| Battery | Type | 100% Brand New A Grade LifePO4 Battery(12.8V 15AH) | |
| Life time | 8-10years | ||
LED Lamp (without sensor) | Max power | 12V 40W | |
| led chip brand | Bridgelux 3030 from USA with high brightness | ||
| lumen (LM) | 170LM/W | ||
| Life time | 100000hours | ||
| Viewing Angle | 140*70° | ||
| Charge time | by sun | 6hours(Strong sunshine) | |
| Discharge time | full power | >15hours | |
| half power | >30hours | ||
| Working temperature | range( ℃ ) | -30℃—+70℃ | |
| Color temperature | range(k) | 2700K-6500K(customized) | |
| Mounting height | range (m) | 4-5M | |
| Space between light | range (m) | 23-27M | |
| Lamps material | aluminium alloy | ||

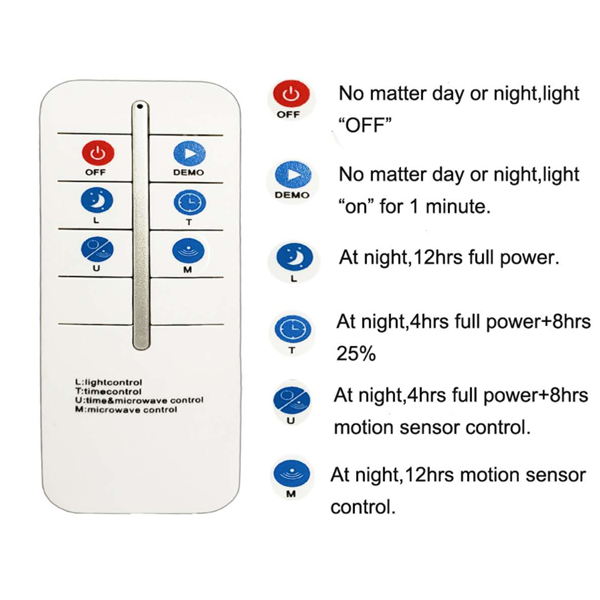

| Remote control | yes | ||
| Certificate | CE / ROHS / IP65 | ||
| Warranty period | 3 years | ||
| Packing & Weight | Product size | 785*410*60MM /365*180*185MM | |
| Net weight | 10.2KG | ||
| Gross weight | 13.2KG | ||
| Packing size | 830*120*470MM/385*210*210MM | ||
| Qty/ctn | 1pcs /ctn | ||
| Packing | neutral | ||
| 60W | |||
| Item NO | Photo | Specifications | |
| JKC-NM60W |
| Solar panel | 18V 65W(Imported High Efficiency Monocrystalline Silicon) |
| Battery | 100% Brand New A Grade LifePO4 Battery(12.8V 30AH) | ||
| Max power | 12V 60W | ||
| led chip brand | Bridgelux 3030 from USA with high brightness | ||
| lumen (LM) | 170LM/W | ||
| Viewing Angle | 140*70° | ||
| Charge time | 6hours(Strong sunshine) | ||
| Working temperature | -30℃—+70℃ | ||
| Color temperature | 2700K-6500K(customized) | ||
| Mounting height | 5-6M | ||
| Space between light | 23-31M | ||
| Lamps material | aluminium alloy | ||
| Remote control | yes | ||
| Certificate | CE / ROHS / IP65 | ||
| Warranty period | 3 years | ||
| 80W | |||
| Item NO：JKC-NM80W | Photo | Specifications | |
| Solar panel | Max power | 18V 90W(Imported High Efficiency Monocrystalline Silicon) |
| Life time | 25years | ||
| Battery | Type | 100% Brand New A Grade LifePO4 Battery(12.8V 45AH) | |
| Life time | 8-10years | ||
LED Lamp (without sensor) | Max power | 12V 80W | |
| led chip brand | Bridgelux 3030 from USA with high brightness | ||
| lumen (LM) | 170LM/W | ||
| Life time | 100000hours | ||
| Viewing Angle | 140*70° | ||
| Charge time | by sun | 6hours(Strong sunshine) | |
| Discharge time | full power | >15hours | |
| half power | >30hours | ||
| Working temperature | range( ℃ ) | -30℃—+70℃ | |
| Color temperature | range(k) | 2700K-6500K(customized) | |
| Mounting height | range (m) | 6-7M | |
| Space between light | range (m) | 23-27M | |
| Lamps material | aluminium alloy | ||
| Remote control | yes | ||
| Certificate | CE / ROHS / IP65 | ||
| Warranty period | 3 years | ||
| Packing & Weight | Product size | 1220*410*60MM /365*180*185MM | |
| Net weight | 15.4KG | ||
| Gross weight | 18.4KG | ||
| Packing size | 1260*470*120MM/385*210*210MM | ||
| Qty/ctn | 1pcs /ctn | ||
| Packing | neutral | ||
| 100w | |||

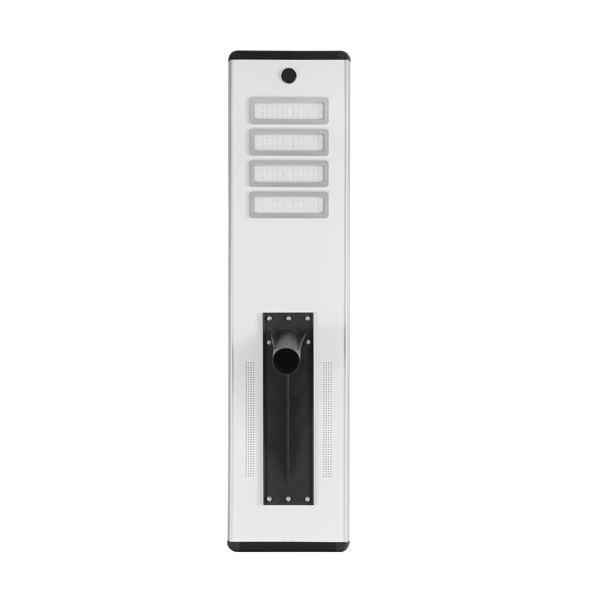

| Item NO.：JKC-NM100W | Specifications | ||
| Solar panel | Max power | 18V 120W(Imported High Efficiency Monocrystalline Silicon) |
| Life time | 25years | ||
| Battery | Type | 100% Brand New A Grade LifePO4 Battery(12.8V 45AH) | |
| Life time | 8-10years | ||
LED Lamp (without sensor) | Max power | 12V 100W | |
| led chip brand | Bridgelux 3030 from USA with high brightness | ||
| lumen (LM) | 170LM/W | ||
| Life time | 100000hours | ||
| Viewing Angle | 140*70° | ||
| Charge time | by sun | 6hours(Strong sunshine) | |
| Discharge time | full power | >15hours | |
| half power | >30hours | ||
| Working temperature | range( ℃ ) | -30℃—+70℃ | |
| Color temperature | range(k) | 2700K-6500K(customized) | |
| Mounting height | range (m) | 7-8M | |
| Space between light | range (m) | 27-31M | |
| Lamps material | aluminium alloy | ||
| Remote control | yes | ||
| Certificate | CE / ROHS / IP65 | ||
| Warranty period | 3 years | ||
| Packing & Weight | Product size | 1675*410*60MM/640*170*250MM | |
| Net weight | 21.1KG | ||
| Gross weight | 24.2KG | ||
| Packing size | 1720*470*120MM/660*210*280MM | ||
| Qty/ctn | 1pcs /ctn | ||
| Packing | neutral | ||

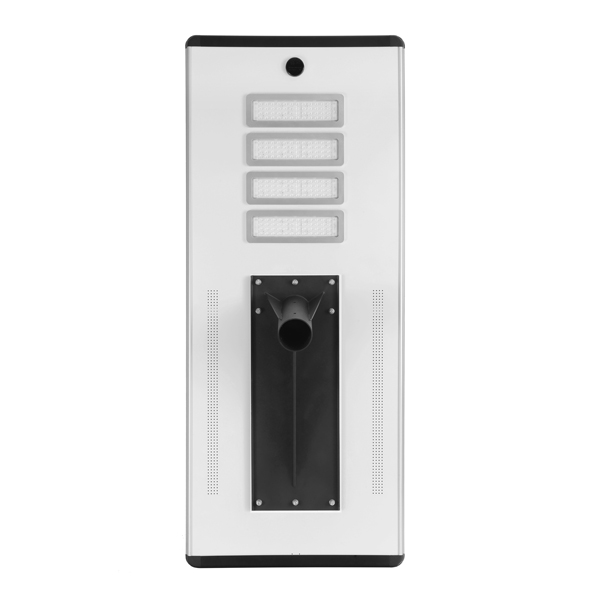

| 120W | |||
| Item NO.：JKC-NM120W | Specifications | ||
| Solar panel | Max power | 18V 160W(Imported High Efficiency Monocrystalline Silicon) |
| Life time | 25years | ||
| Battery | Type | 100% Brand New A Grade LifePO4 Battery(12.8V 60AH) | |
| Life time | 8-10years | ||
LED Lamp (without sensor) | Max power | 12V 120W | |
| led chip brand | Bridgelux 3030 from USA with high brightness | ||
| lumen (LM) | 170LM/W | ||
| Life time | 100000hours | ||
| Viewing Angle | 140*70° | ||
| Charge time | by sun | 6hours(Strong sunshine) | |
| Discharge time | full power | >15hours | |
| half power | >30hours | ||
| Working temperature | range( ℃ ) | -30℃—+70℃ | |
| Color temperature | range(k) | 2700K-6500K(customized) | |
| Mounting height | range (m) | 8-9M | |
| Space between light | range (m) | 23-34M | |
| Lamps material | aluminium alloy | ||
| Remote control | yes | ||
| Certificate | CE / ROHS / IP65 | ||
| Warranty period | 3 years | ||
| Packing & Weight | Product size | 1445*600*60MM/640*240*250MM | |
| Net weight | 25.8KG | ||
| Gross weight | 29.5KG | ||
| Packing size | 1500*660*120MM/660*280*280MM | ||
| Qty/ctn | 1pcs/ctn | ||
| Packing | neutral | ||

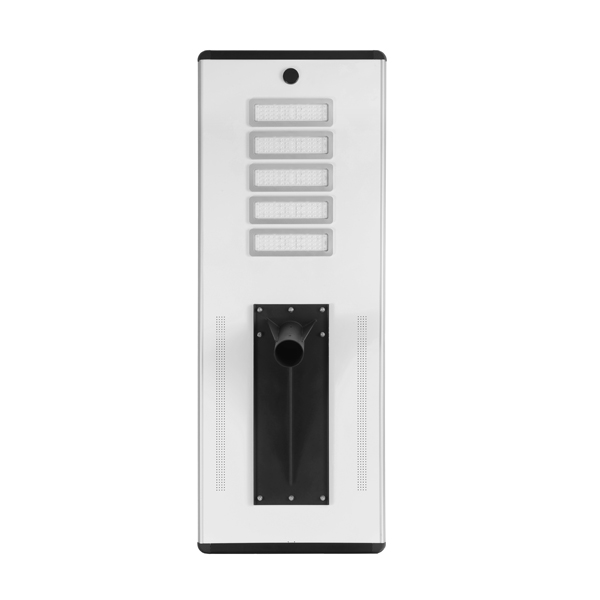

| 150w | |||
| Item NO.：JKC-NM150W | Specifications | ||
| Solar panel | Max power | 18V 180W(Imported High Efficiency Monocrystalline Silicon) |
| Life time | 25years | ||
| Battery | Type | 100% Brand New A Grade LifePO4 Battery(12.8V 75AH) | |
| Life time | 8-10years | ||
LED Lamp (without sensor) | Max power | 12V150W | |
| led chip brand | Bridgelux 3030 | ||
| lumen (LM) | 170LM/W | ||
| Life time | 100000hours | ||
| Viewing Angle | 140*70° | ||
| Charge time | by sun | 6hours(Strong sunshine) | |
| Discharge time | full power | >15hours | |
| half power | >30hours | ||
| Working temperature | range( ℃ ) | -30℃—+70℃ | |
| Color temperature | range(k) | 2700K-6500K(customized) | |
| Mounting height | range (m) | 9-10M | |
| Space between light | range (m) | 23-41M | |
| Lamps material | aluminium alloy | ||
| Remote control | yes | ||
| Certificate | CE / ROHS / IP65 | ||
| Warranty period | 3 years | ||
| Packing & Weight | Product size | 1615*600*60MM/640*240*250MM | |
| Net weight | 28.4KG | ||
| Gross weight | 32.2KG | ||
| Packing size | 1670*660*120MM/660*280*280MM | ||
| Qty/ctn | 1pcs/ctn | ||
| Packing | neutral | ||

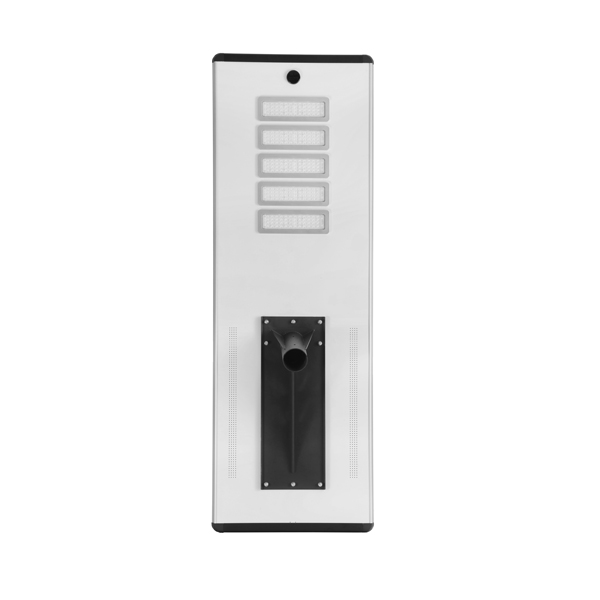

| 200w | |||
| Item NO.：JKC-NM200W | Specifications | ||
| Solar panel | Max power | 36V 200W(Imported High Efficiency Monocrystalline Silicon) |
| Life time | 25years | ||
| Battery | Type | 100% Brand New A Grade LifePO4 Battery(25.6V 45AH) | |
| Life time | 8-10years | ||
LED Lamp (without sensor) | Max power | 24V 200W | |
| led chip brand | Bridgelux 3030 | ||
| lumen (LM) | 170LM/W | ||
| Life time | 100000hours | ||
| Viewing Angle | 140*70° | ||
| Charge time | by sun | 6hours(Strong sunshine) | |
| Discharge time | full power | >15hours | |
| half power | >30hours | ||
| Working temperature | range( ℃ ) | -30℃—+70℃ | |
| Color temperature | range(k) | 2700K-6500K(customized) | |
| Mounting height | range (m) | 9-12M | |
| Space between light | range (m) | 23-41M | |
| Lamps material | aluminium alloy | ||
| Remote control | yes | ||
| Certificate | CE / ROHS / IP65 | ||
| Warranty period | 3 years | ||
| Packing & Weight | Product size | 1750*600*60MM/640*240*250MM | |
| Net weight | 31KG | ||
| Gross weight | 34.6KG | ||
| Packing size | 1800*660*120MM/660*280*280MM | ||
| Qty/ctn | 1pcs/ctn | ||
| Packing | neutral | ||

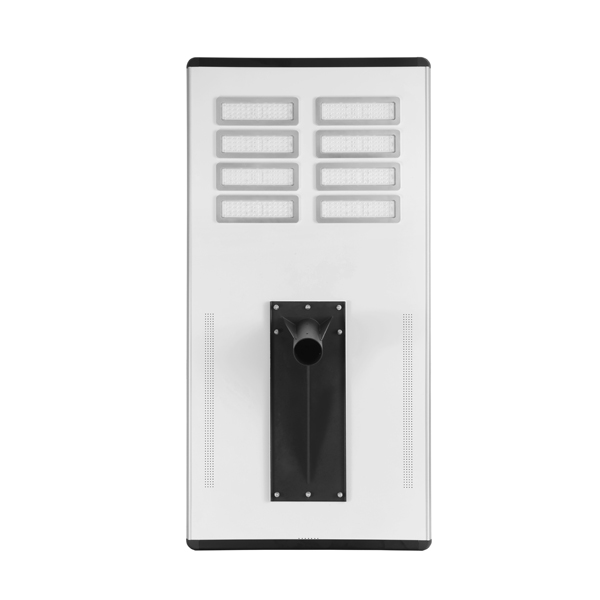

| 250w | |||
| Item NO.：JKC-NM250W | Specifications | ||
| Solar panel | Max power | 36V 250W(Imported High Efficiency Monocrystalline Silicon) |
| Life time | 25years | ||
| Battery | Type | 100% Brand New A Grade LifePO4 Battery(25.6V 60AH) | |
| Life time | 8-10years | ||
LED Lamp (without sensor) | Max power | 24V 240W | |
| led chip brand | Bridgelux 3030 | ||
| lumen (LM) | 170LM/W | ||
| Life time | 100000hours | ||
| Viewing Angle | 140*70° | ||
| Charge time | by sun | 6hours(Strong sunshine) | |
| Discharge time | full power | >15hours | |
| half power | >30hours | ||
| Working temperature | range( ℃ ) | -30℃—+70℃ | |
| Color temperature | range(k) | 2700K-6500K(customized) | |
| Mounting height | range (m) | 9-12M | |
| Space between light | range (m) | 23-41M | |
| Lamps material | aluminium alloy | ||
| Remote control | yes | ||
| Certificate | CE / ROHS / IP65 | ||
| Warranty period | 3 years | ||
| Packing & Weight | Product size | 1580*780*60MM/640*340*250MM | |
| Net weight | 36.9KG | ||
| Gross weight | 40.8KG | ||
| Packing size | 1630*830*120MM/660*380*280MM | ||
| Qty/ctn | 1pcs/ctn | ||
| Packing | neutral | ||
| 300w | |||

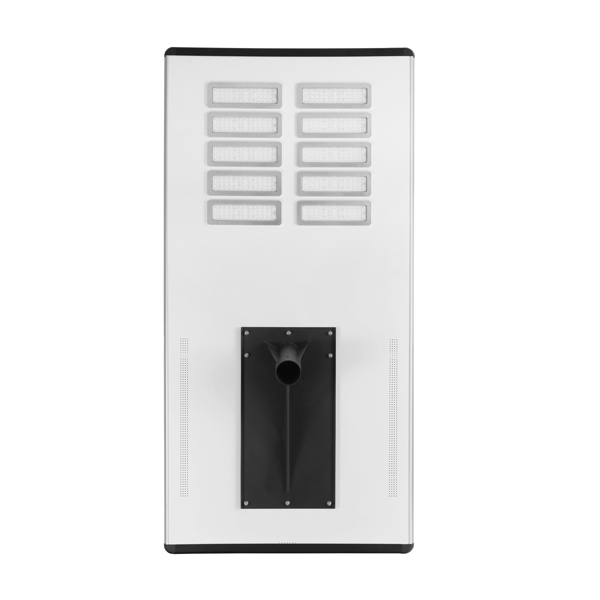

| Item NO.：JKC-NM300W | Specifications | ||
| Solar panel | Max power | 36V 320W(Imported High Efficiency Monocrystalline Silicon) |
| Life time | 25years | ||
| Battery | Type | 100% Brand New A Grade LifePO4 Battery(25.6V 75AH) | |
| Life time | 8-10years | ||
LED Lamp (without sensor) | Max power | 24V 300W | |
| led chip brand | Bridgelux 3030 | ||
| lumen (LM) | 170LM/W | ||
| Life time | 100000hours | ||
| Viewing Angle | 140*70° | ||
| Charge time | by sun | 6hours(Strong sunshine) | |
| Discharge time | full power | >15hours | |
| half power | >30hours | ||
| Working temperature | range( ℃ ) | -30℃—+70℃ | |
| Color temperature | range(k) | 2700K-6500K(customized) | |
| Mounting height | range (m) | 10-12M | |
| Space between light | range (m) | 23-41M | |
| Lamps material | aluminium alloy | ||
| Remote control | yes | ||
| Certificate | CE / ROHS / IP65 | ||
| Warranty period | 3 years | ||
| Packing & Weight | Product size | 1800*900*60MM/720*340*250MM | |
| Net weight | 44.9KG | ||
| Gross weight | 48.9KG | ||
| Packing size | 1850*950*120MM/660*380*280MM | ||
| Qty/ctn | 1pcs/ctn | ||
| Packing | neutral | ||
| 400W | |||

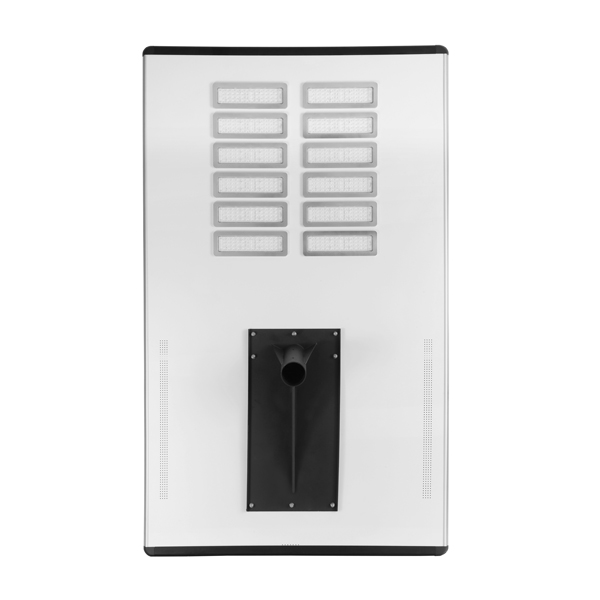

| Item NO.：JKC-NM400W | Specifications | ||
| Solar panel | Max power | 36V 400W(Imported High Efficiency Monocrystalline Silicon) |
| Life time | 25years | ||
| Battery | Type | 100% Brand New A Grade LifePO4 Battery(25.6V 90AH) | |
| Life time | 8-10years | ||
LED Lamp (without sensor) | Max power | 24V 400W | |
| led chip brand | Bridgelux 3030 | ||
| lumen (LM) | 170LM/W | ||
| Life time | 100000hours | ||
| Viewing Angle | 140*70° | ||
| Charge time | by sun | 6hours(Strong sunshine) | |
| Discharge time | full power | >15hours | |
| half power | >30hours | ||
| Working temperature | range( ℃ ) | -30℃—+70℃ | |
| Color temperature | range(k) | 2700K-6500K(customized) | |
| Mounting height | range (m) | 10-12M | |
| Space between light | range (m) | 23-41M | |
| Lamps material | aluminium alloy | ||
| Remote control | yes | ||
| Certificate | CE / ROHS / IP65 | ||
| Warranty period | 3 years | ||
| Packing & Weight | Product size | 1795*1110*60MM/720*340*250MM | |
| Net weight | 54.3KG | ||
| Gross weight | 58.1KG | ||
| Packing size | 1850*1160*120MM/660*380*280MM | ||
| Qty/ctn | 1pcs/ctn | ||
| Packing | neutral | ||
EN
ja
fr
de
es
pt
ar
tr
tl
ms
id
