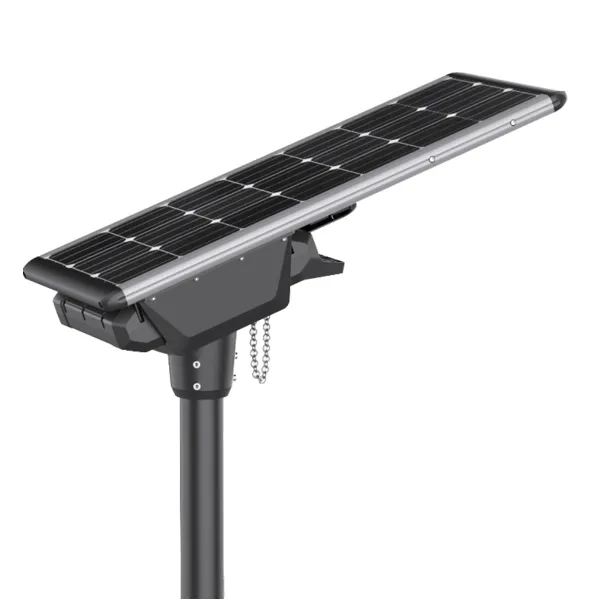

The JKC QH 60W All-in-One Solar Street Light is designed to deliver reliable, energy-efficient illumination for residential streets, parks, pathways, and commercial outdoor spaces. Featuring an integrated design that combines a high-efficiency monocrystalline solar panel, intelligent controller, long-life more than 2,000 cycle LiFePO4 battery, and premium LED module, this solar powered street light ensures stable dusk-to-dawn lighting with quick installation and minimal maintenance. As a dependable solar lighting solution, it provides sustainable, off-grid performance while helping reduce electricity costs and supporting environmentally friendly outdoor lighting projects.
| Specification | |
| Features: 1.LED module can be adjusted in angle and is suitable for different roads. 2.Large battery box has a built-in large-capacity battery, and adopts a leading pull-out design. 3.High class integrated die-cast aluminum alloy case. 4.Lighting mode use intelligence radar sensor with a long sensing distance. 5.High-efficiency LED chips, 140° viewing angle, and a wider lighting range. 6 Intelligent power adjustment, automatic weather judgment, reasonable planning of discharge rules, automatic switching. 7.With remote control, UVA technology, strong corrosion resistance, 30m remote control operation, 4 lighting modes. 8.Easy disassembly, Installation and maintenance, only take three minutes. 9.Thick installation base and bracket for better wind resistance. | |
| LED | 60W Bridgelux chips5050（Life time 100000hours） |
| Lumen(LM) | 190LM/W |
| Colour Tempreture | 6000K ~6500K（it can be customized） |
| LifePO4 Battery | 30AH 12.8V |
| Solar Panel | 18V 80W Imported High Efficiency Monocrystalline Silicon |
| Install Pole diameter | 70-76mm |
| Mounting Height | 6~8m （Suggest install between space20-25m） |
| Solar Charging Time | 6 hours by bright sunlight |
| Cloudy/Rainy days | 5-7 Cloudy/Rainy days |
| Material | High Class Aluminum |
| Product Size | 949*434*319mm |
| LED Lamp | 96PCS |
| Motion sensor | Yes（Microwave Sensor） |
| Remote Control | Yes（1pc remote control per lot） |
| Waterproof | IP66 |
| Working Tempreture | -25℃ to 65℃ |
| Certificates | CE、ROHS、IP66 |
| Warranty | 3Years |
| Lighting Mode | |
 | |
| Split Packaging: LED Lamp Packing Size:1010*100*495MM Q'ty/ctn:1Set G.W:9.1KGBattery box packing size:510*470*495MM Q'ty/ctn:1Set G.W:6.2KG Packs Containers： 20GP:165Sets 40GP:340Sets 40HP:405Sets | Integrated Packaging: LED Lamp Packing Size:1010*290*500MM Q'ty/ctn:1Set G.W:15.8KG Packs Containers： 20GP:190Sets 40GP:390Sets 40HP:465Sets |
Efficient Brightness with Lower Energy Costs: The JKC QH-60W delivers reliable illumination for residential streets, gardens, pathways, parks, and parking areas while operating entirely on solar energy, helping reduce electricity expenses and carbon emissions.
Quick Installation, No Underground Wiring: Its all-in-one design integrates the LED module, monocrystalline solar panel, LiFePO₄ battery, and intelligent controller into a single fixture, making installation faster and significantly lowering labor and infrastructure costs.
Smart Lighting for Longer Runtime: Built-in dusk-to-dawn operation and PIR motion sensing automatically adjust brightness according to activity, maximizing battery efficiency and extending lighting performance throughout the night.
Durable Construction for Outdoor Environments: Manufactured with a high-strength aluminum alloy housing and IP65 waterproof protection, the QH-60W is designed to withstand rain, dust, and temperatures from -25°C to 65°C, ensuring dependable year-round operation.
Versatile for Municipal and Commercial Projects: Whether used for community roads, campuses, industrial facilities, courtyards, or public spaces, the JKC QH-60W provides an energy-efficient and low-maintenance lighting solution suitable for a wide range of outdoor applications.
